Antifreeze Valves
The Advantay Antifreeze valve range has been designed to protect heat pump systems from damage as a result of water
temperatures falling to 3°c. These valve use only the highest quality parts including brass internal anti vacuum components to ensure smooth operation in the event of low temperature operation ensuring the system is drained smoothly, quickly and efficiently.
TECHNICAL SPECIFICATIONS:
Nominal pressure: PN 10
Fluid temperature (opening): 3°c
Operating temperature: -30 to +50°c
Fluid temperature (closed): 4 °c
Accuracy: ±1°C
Vacuum breaker valve – inspectable
Range consist of:
Compression fitting:

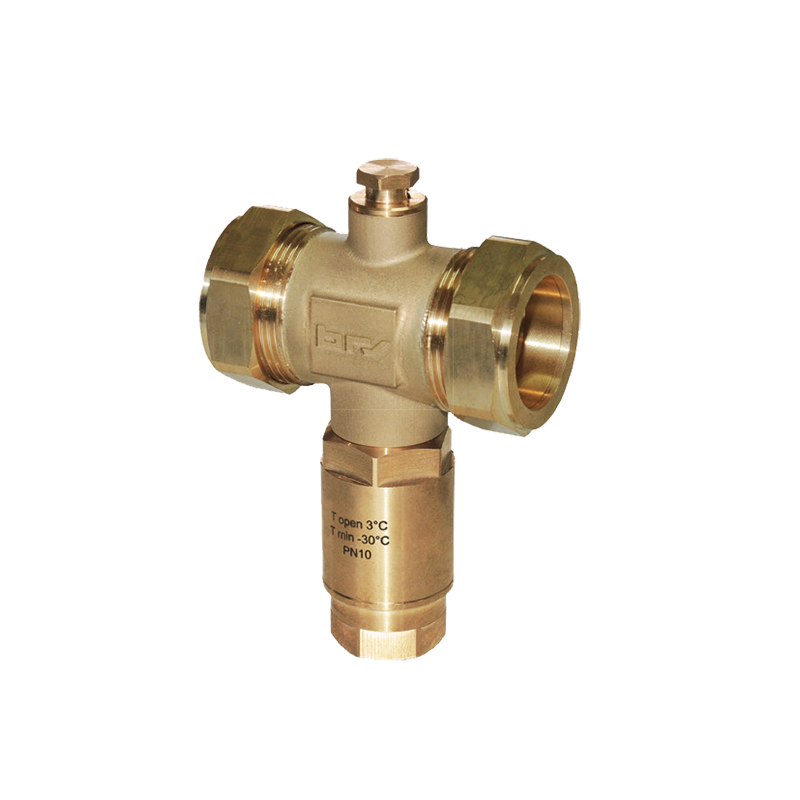

0152000028 – 28mm Antifreeze valve
Male x Male Fitting:
0152000100 – 1″ MM Antifreeze valve
0152000114 – 1-1/4″ MM Antifreeze valve
0152000112 – 1-1/2″ MM Antifreeze valve

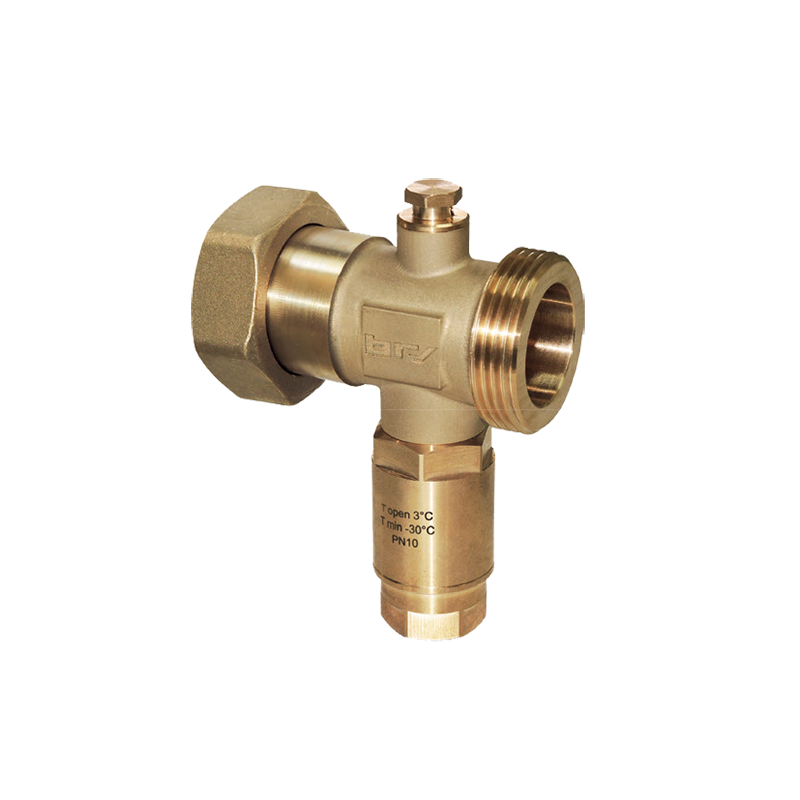

Male x Female Union Fitting:
015200100U – 1″ F Union x 1″ M Antifreeze valve
015200114U – 1-1/4″ Union x 1-1/4″ M Antifreeze valve
