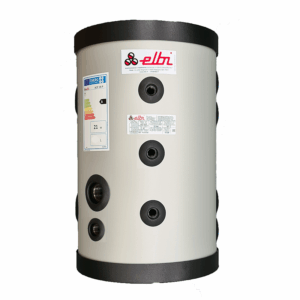

50ltr Heat Pump Buffer Tanks – A class rated
Specifically designed for use with Heat Pump installations to provide a stored volume of heated water which helps to prevent heat pump short cycling and can increase response times, COP and increase the life span of the heat pump. Use for treated water only.
The ACF-V range is a floor standing cylindrical tank rated featuring twin insulation layer and a rigid PVC Jacket. The ACP-V has an industry leading Class A energy rating and is ERP ready.
These buffer tanks feature 4 flow and return connections, 2 on each side, along with a top connections and 2 x 1/2” front mounted port for temperature sensing.
Product Code: ACF-50V
Description: 50ltr heat pump buffer vessel – No Element
Dimensions: 410mm O/D x 890mm H
Specifications:
- Class A rated
- Floor standing
- Carbon steel
- Max pressure 10bar
- Min temperature -10°c
- Max temperature +95°c
Connections:
- 4 x 1-1/4” F side connections to suit flow and return from system and flow and return from Heat Pump
- 2 x 1/2” F sensor / monitoring ports
- 1 x 1-1/4” F top connection for safety valve or air release valve
- 1 x 1-1/2” immersion heater element port
5 year warranty
