Water Inlet Group

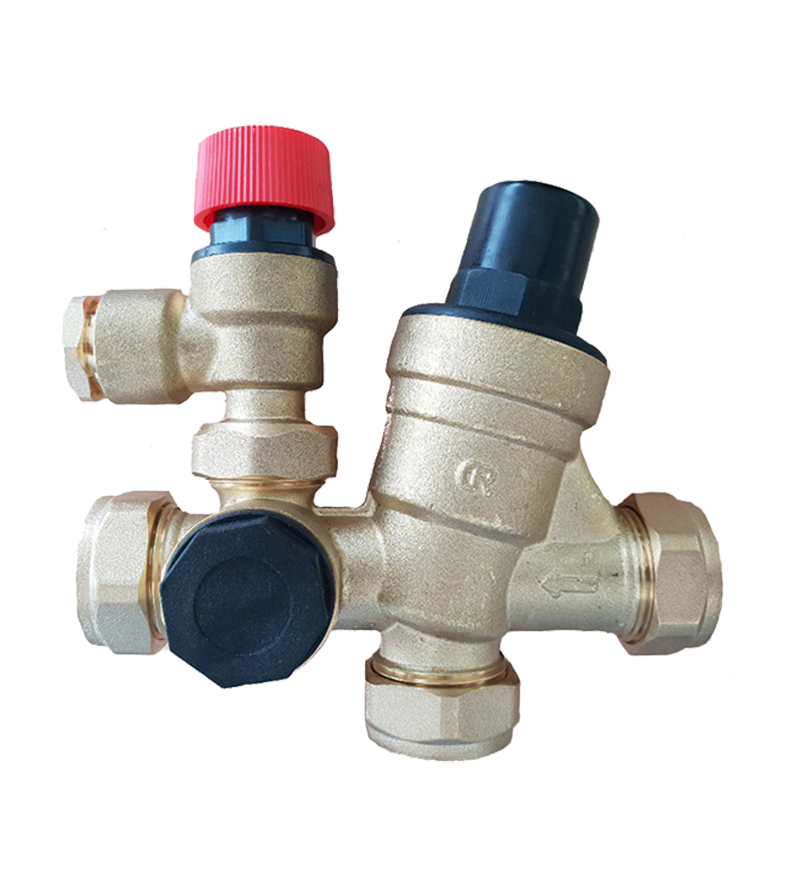

The ADVWIG2222 water inlet group combines a safety (pressure) relief valve and pressure reducing valve in one assembly and is primarily designed to protect domestic unvented water systems from over pressure whilst maintaining the set water pressure.
The ADVWIG2222 features backflow prevention as standard and is supplied with 22mm compression connections for ease of installation.
Features: |
|
Pressure Reducing Valve |
pre set 3bar, adjustable between 1-6bar |
Safety relief valve |
pre-set 6bar fixed |
Body |
BRASS – DZR |
Reducing valve seals |
EPDM |
Spring Stainless steel |
304 |
Specifications: |
|
Medium |
Domestic hot / cold water |
Max. working temp |
90°C |
Max. inlet working pressure |
10bar |
Max. static pressure |
16bar |
Primary connections |
22mm compression |
Safety relief valve discharge |
15mm compression |
